Elite Hybrid Adjusting Chiropractic Table

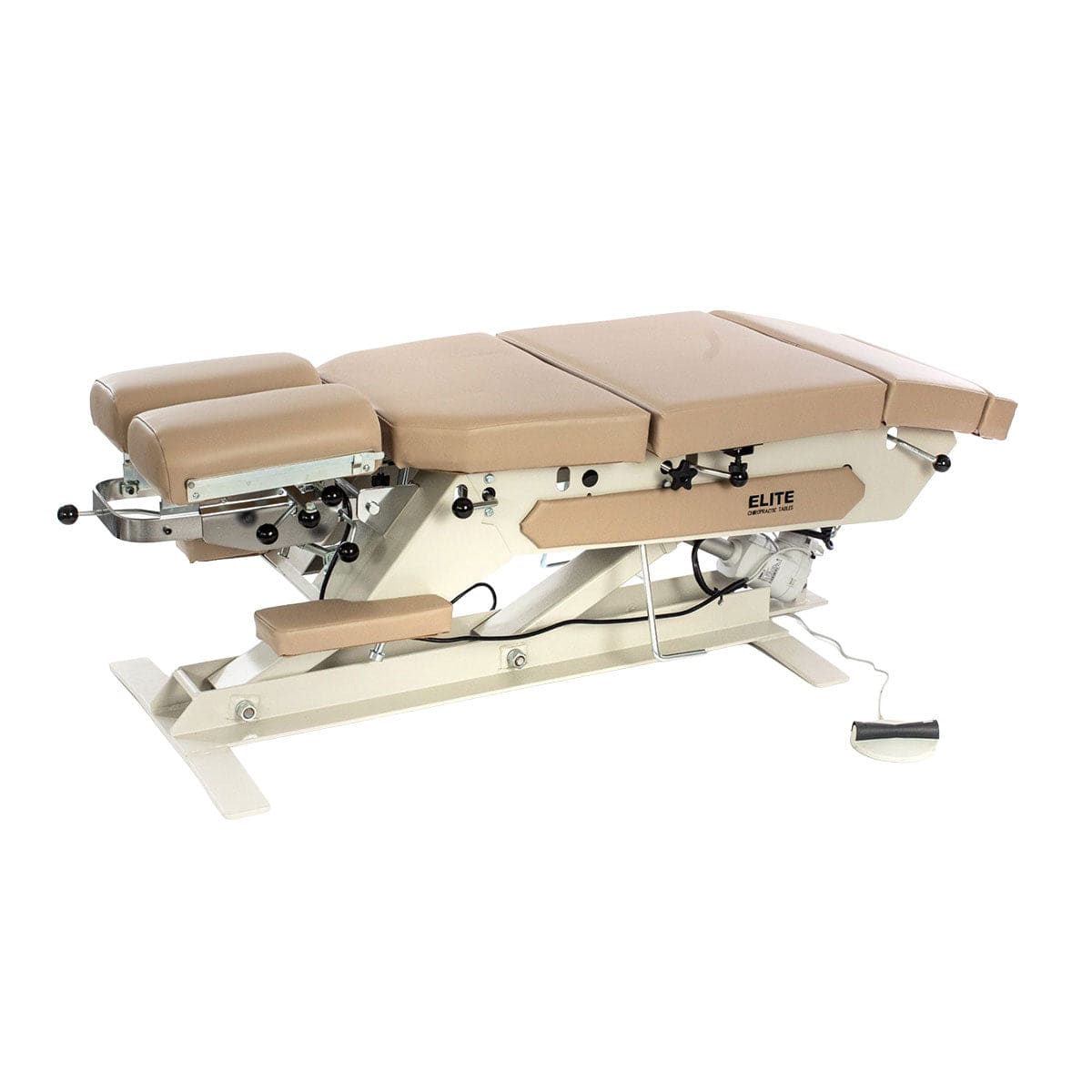

The Elite Hybrid Adjusting Chiropractic Table combines the versatility of the ELITE Electric Elevation table with the functionality of a seated hybrid table. It’s designed for practitioners who want flexible positioning options without compromising stability or performance.

With motorized elevation controlled by a footswitch, you can quickly set the table to a comfortable working height. When needed, the table converts from an electric elevation platform to a hybrid configuration, allowing you to adapt your setup to different treatment styles.

Built for daily clinical use and rated to 230 kg (500 lbs.)+, the Elite Hybrid supports both practitioner comfort and patient confidence.

At-a-Glance

• Electric elevation with footswitch control
• Eight-inch standard elevation range (upgradeable)
• Rated to 230 kg (500 lbs.)+
• Convertible from elevation to hybrid configuration
• Optional cordless battery-powered operation
• Multi-directional headpiece with upgrade options
• Customizable cervical, thoracic, and pelvic drops
• 21″ wide treatment surface

What’s Included

• Electric elevation base with footswitch
• Hybrid conversion functionality
• Multi-directional headpiece (tilt, elevation, spread)
• 21″ wide cushion surface

Benefits You’ll Notice

• Quick height adjustment for improved ergonomics
• Flexible configuration to support seated and traditional techniques
• Smooth, quiet motorized elevation
• Room layout freedom with optional cordless upgrade
• Stable construction suited to long clinic days

Features & Specifications

• Elevation Range: 8″ motorized adjustment
• Elevation Upgrade: Increase range from 8″ to 10″
• Weight Rating: 230 kg (500 lbs.)+
• Cordless Option: Battery-powered elevation available
• Battery Performance: Up to one week per charge
• Surface Width: 21″
• Cervical Elevation: Raises up to 6″ above cushions
• Thoracic & Pelvic/Lumbar Elevation: Up to 15°
• Knee Break: Adjusts up 20° and down 10°
• Construction: Welded steel frame with durable powder coat finish

Optional Features

• Elevation Motor Upgrade: Extended 10″ elevation range
• Cordless Power: Same lift performance without extension cords, optional second battery pack
• Headpiece Upgrades: HP-FLEX (adds flexion and traction) or HP-FLEX-L (adds lateral flexion)
• Drops: Cervical, thoracic (full or upper & lower), and pelvic configurations
• Thoracic Drop: Available with abdominal breakaway feature

How to Use

• Use the footswitch to raise or lower the table to your preferred working height.
• Convert the table to hybrid configuration as needed for seated or alternative positioning techniques.
• Adjust the headpiece tilt, elevation, and spread for patient comfort.
• If equipped, cock and engage drop sections according to your treatment plan.
• Recharge the battery as needed if using the cordless upgrade.

Who It’s For

• Chiropractors who incorporate seated hybrid techniques
• Clinics seeking electric elevation with added flexibility
• Practices prioritizing ergonomic working height
• Professionals wanting customizable drop configurations

FAQ

• What is the elevation range? The table provides eight inches of motorized elevation, with an optional upgrade to ten inches.
• What is the weight rating? The table is rated to 230 kg (500 lbs.)+.
• Can it operate without a power outlet? Yes, a cordless battery-powered upgrade is available.
• How long does the battery last? One charge typically supports up to a week of regular usage.

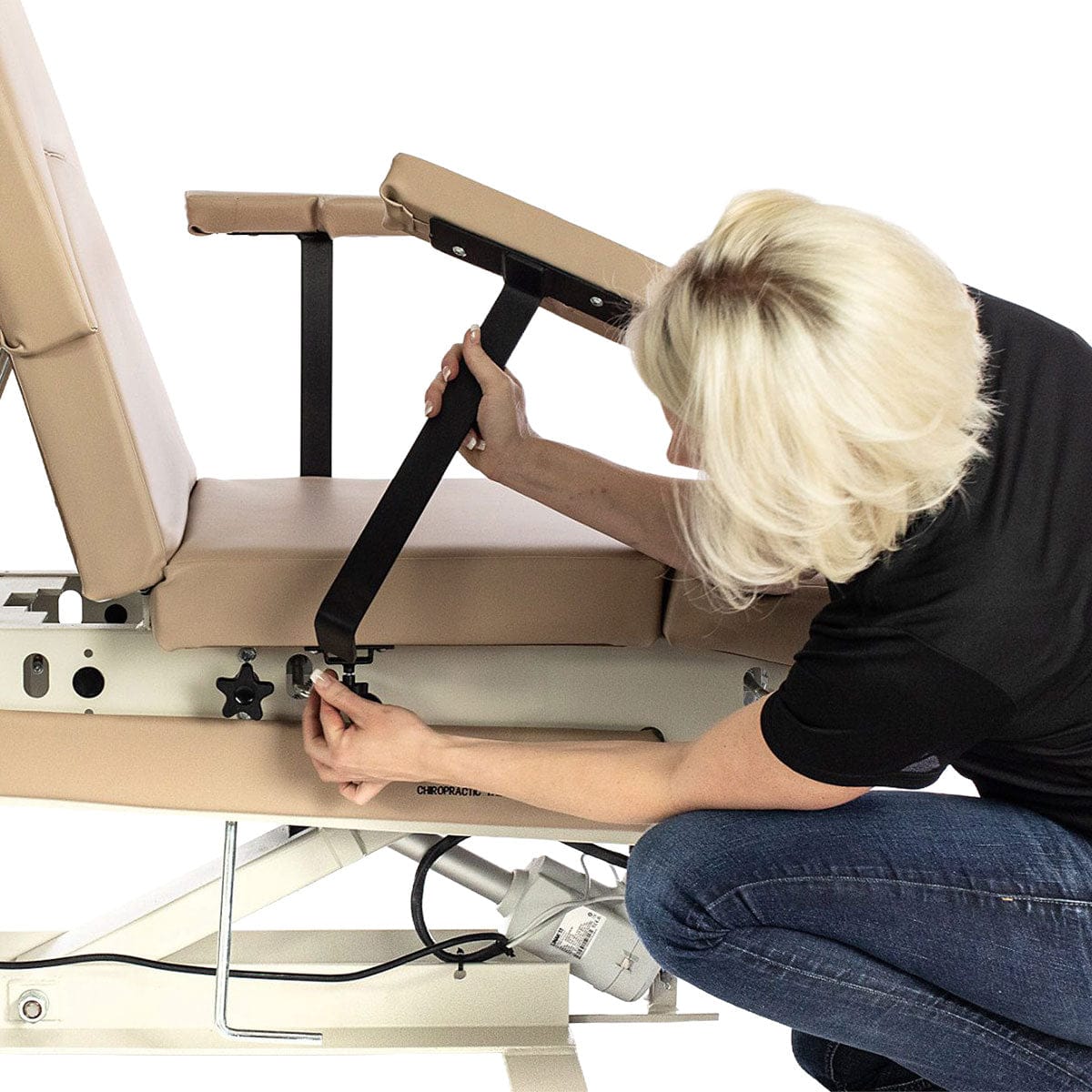

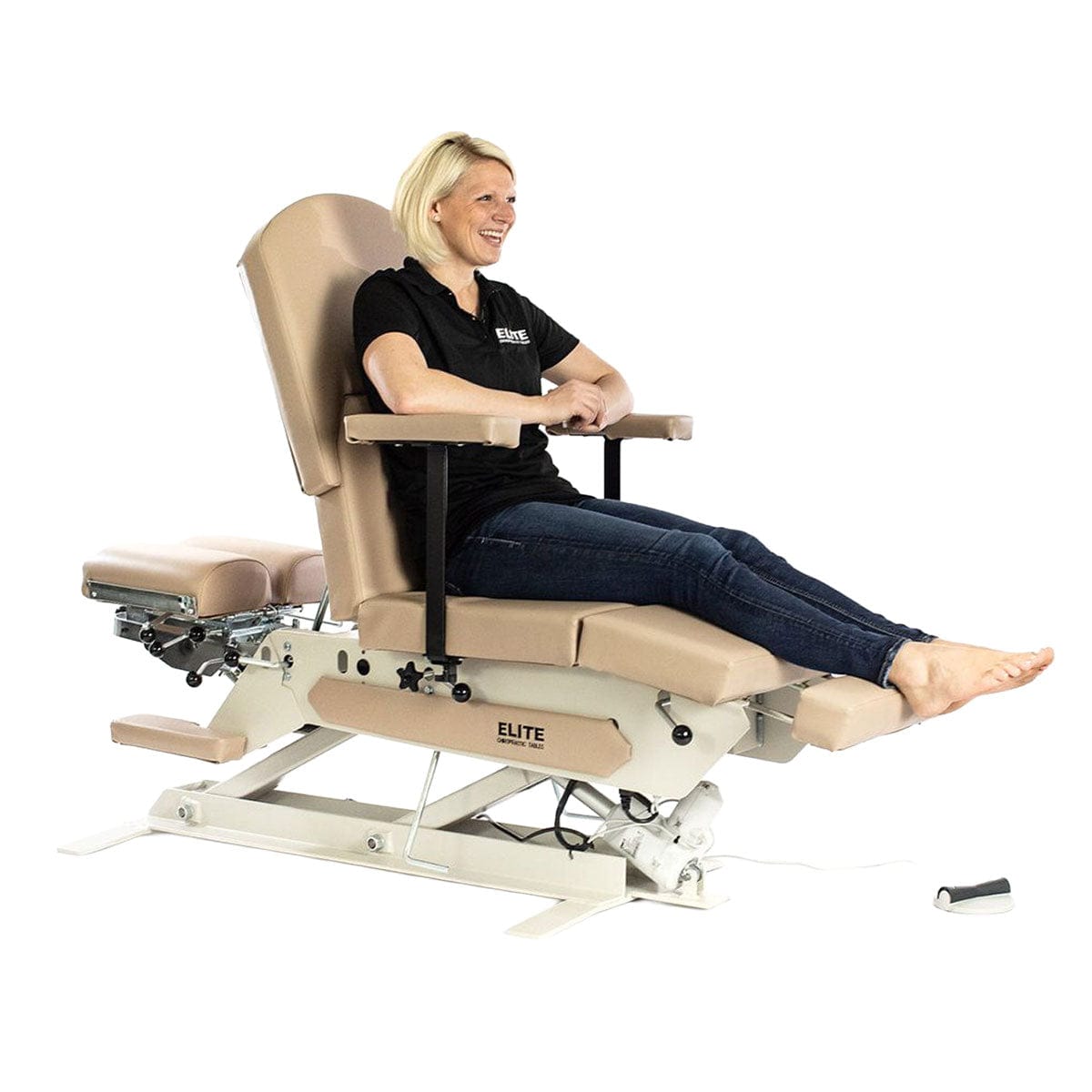

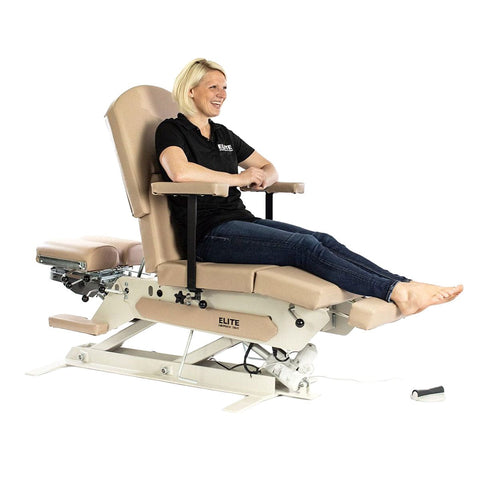

• What does hybrid conversion mean? The table can quickly convert from electric elevation mode to a hybrid configuration for seated techniques.
• Are drop sections customizable? Yes, cervical, thoracic, and pelvic drops can be configured.
• Does the headpiece adjust? Yes, it offers tilt, elevation, and spread, with optional flexion and lateral flexion upgrades.
• Is the motor quiet? The electric motor is designed for smooth and quiet operation in clinical settings.

Safety & Disclaimers

This equipment is intended for professional chiropractic use. Proper training is required before operating elevation, hybrid conversion, or drop features. Follow manufacturer guidelines for charging, setup, and configuration. Discontinue use if mechanical or electrical components show signs of wear or malfunction.
